DELTA_Save

DELTA_Save stores raw live stream data or generated frame images. Raw saving writes .dvs files from a live Delta series camera, and frame saving writes generated BMP image frames from either live streaming or playback.

Back to API overview.

Typical flow

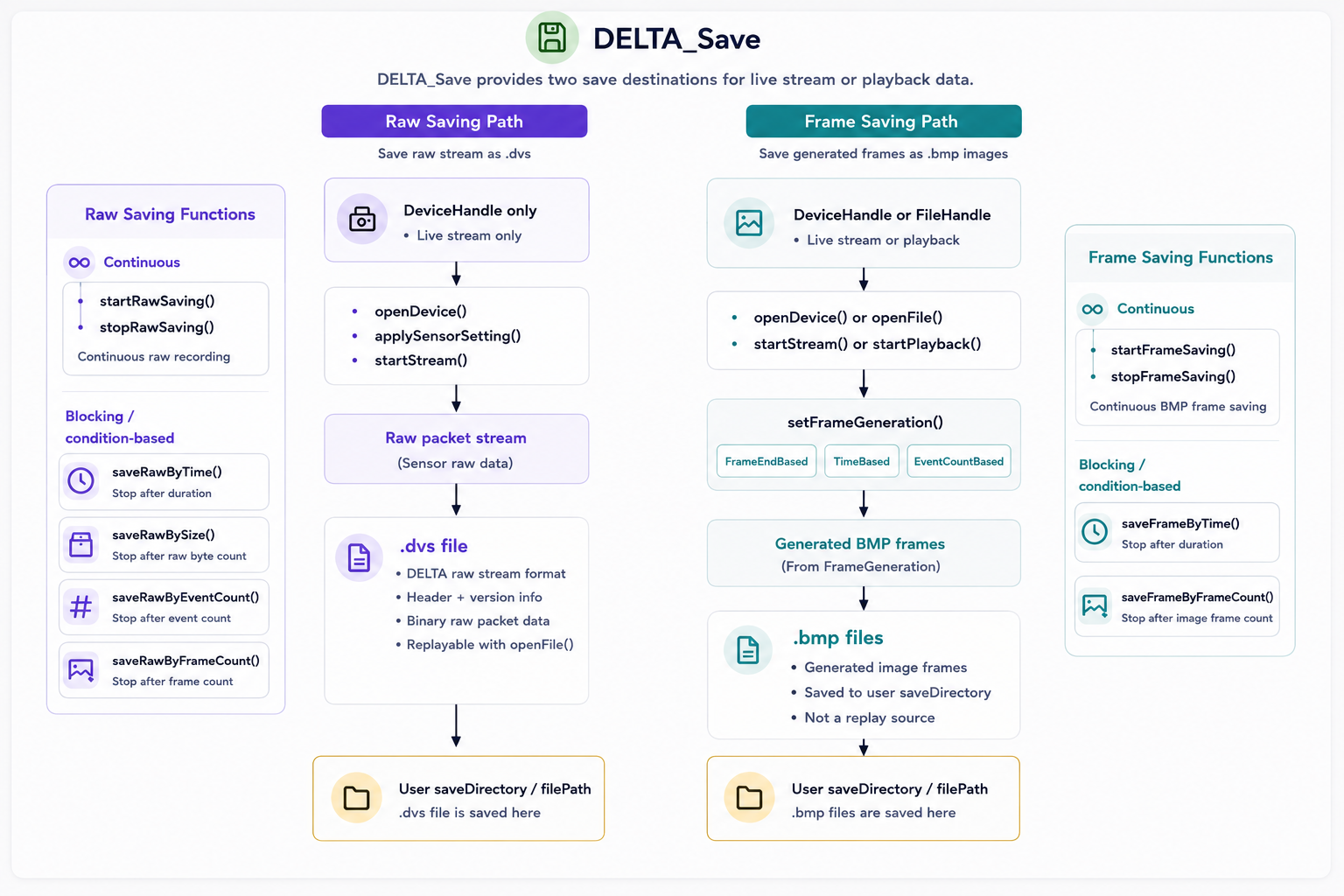

Delta save architecture

Raw saving requires a live DeviceHandle and must be used after startStream(). Frame saving accepts InputSource*, so it can save generated frames from either startStream() or startPlayback().

Functions

Function	Purpose
`startRawSaving()`	Start continuous raw `.dvs` saving from a live Delta series camera.
`stopRawSaving()`	Stop continuous raw data saving.
`saveRawByTime()`	Save raw data for a fixed duration.
`saveRawBySize()`	Save raw data until a target byte count is reached.
`saveRawByEventCount()`	Save raw data until a target event count is reached.
`saveRawByFrameCount()`	Save raw data until a target frame count is reached.
`startFrameSaving()`	Start continuous generated BMP frame saving.
`stopFrameSaving()`	Stop generated BMP frame saving.
`saveFrameByTime()`	Save generated BMP frames for a fixed duration.
`saveFrameByFrameCount()`	Save generated BMP frames until a target frame count is reached.

Function reference

startRawSaving()

Status startRawSaving(DeviceHandle handle, const char* saveDirectory);

Starts saving raw device data to the specified directory. Saved raw files use the .dvs format and can be opened later with openFile().

Use when: After startStream() when the application needs continuous raw recording.

Parameters

Name	Type	Direction	Description
`handle`	`DeviceHandle`	Input	Device handle returned by `openDevice()`.
`saveDirectory`	`const char*`	Input	Directory where raw data will be saved.

Returns

Value	Meaning
`Status::Success`	Raw saving started successfully.
Error status	Raw saving could not be started. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::startRawSaving(device, "recordings");
if (status != delta::Status::Success) {
    std::cout << delta::getStatusMessage(status) << std::endl;
}

stopRawSaving()

Status stopRawSaving(DeviceHandle handle);

Stops raw data saving for the opened Delta series camera.

Use when: After startRawSaving() when continuous raw recording should end.

Parameters

Name	Type	Direction	Description
`handle`	`DeviceHandle`	Input	Device handle returned by `openDevice()`.

Returns

Value	Meaning
`Status::Success`	Raw saving stopped successfully.
Error status	Raw saving could not be stopped. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::stopRawSaving(device);
if (status != delta::Status::Success) {
    std::cout << delta::getStatusMessage(status) << std::endl;
}

saveRawByTime()

Status saveRawByTime(DeviceHandle handle,
                     const char* saveDirectory,
                     std::int32_t durationMs);

Saves raw device data for the specified duration. This function blocks until saving completes.

Use when: After startStream() to record a fixed-duration .dvs file.

Parameters

Name	Type	Direction	Description
`handle`	`DeviceHandle`	Input	Device handle returned by `openDevice()`.
`saveDirectory`	`const char*`	Input	Directory where raw data will be saved.
`durationMs`	`std::int32_t`	Input	Saving duration in milliseconds.

Returns

Value	Meaning
`Status::Success`	Raw data was saved successfully.
Error status	Raw data could not be saved. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::saveRawByTime(device, "recordings", 5000);
if (status != delta::Status::Success) {
    std::cout << delta::getStatusMessage(status) << std::endl;
}

saveRawBySize()

Status saveRawBySize(DeviceHandle handle,
                     const char* saveDirectory,
                     std::uint64_t bytes);

Saves raw device data until the accumulated raw packet byte count reaches the specified value. This function blocks until saving completes.

Use when: After startStream() to record a .dvs file with a target raw byte count.

Parameters

Name	Type	Direction	Description
`handle`	`DeviceHandle`	Input	Device handle returned by `openDevice()`.
`saveDirectory`	`const char*`	Input	Directory where raw data will be saved.
`bytes`	`std::uint64_t`	Input	Target raw packet byte count.

Returns

Value	Meaning
`Status::Success`	Raw data was saved successfully.
Error status	Raw data could not be saved. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::saveRawBySize(device, "recordings", 1024 * 1024 * 100);

saveRawByEventCount()

Status saveRawByEventCount(DeviceHandle handle,
                           const char* saveDirectory,
                           std::uint64_t events);

Saves raw device data until the streamed event count reaches the specified count. This function blocks until saving completes.

Use when: After startStream() to record until a target event count is reached.

Parameters

Name	Type	Direction	Description
`handle`	`DeviceHandle`	Input	Device handle returned by `openDevice()`.
`saveDirectory`	`const char*`	Input	Directory where raw data will be saved.
`events`	`std::uint64_t`	Input	Target event count.

Returns

Value	Meaning
`Status::Success`	Raw data was saved successfully.
Error status	Raw data could not be saved. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::saveRawByEventCount(device, "recordings", 1000000);

saveRawByFrameCount()

Status saveRawByFrameCount(DeviceHandle handle,
                           const char* saveDirectory,
                           std::uint64_t frames);

Saves raw device data until the streamed frame count reaches the specified count. This function blocks until saving completes.

Use when: After startStream() to record until a target frame count is reached.

Parameters

Name	Type	Direction	Description
`handle`	`DeviceHandle`	Input	Device handle returned by `openDevice()`.
`saveDirectory`	`const char*`	Input	Directory where raw data will be saved.
`frames`	`std::uint64_t`	Input	Target frame count.

Returns

Value	Meaning
`Status::Success`	Raw data was saved successfully.
Error status	Raw data could not be saved. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::saveRawByFrameCount(device, "recordings", 300);

startFrameSaving()

Status startFrameSaving(InputSource* handle,
                        const char* saveDirectory,
                        FrameGeneration generation);

Starts saving generated frame images as BMP files using the selected frame generation setting. This function applies generation through setFrameGeneration(), replacing the input source's active frame generation setting. That change is not reverted when saving stops, so call setFrameGeneration() again afterward if the application needs to restore the previous setting.

Use when: After startStream() or startPlayback() when the application needs continuous BMP frame output.

Parameters

Name	Type	Direction	Description
`handle`	`InputSource*`	Input	Input source handle returned by `openDevice()` or `openFile()`.
`saveDirectory`	`const char*`	Input	Directory where frame images will be saved.
`generation`	`FrameGeneration`	Input	Frame generation mode and parameter.

Returns

Value	Meaning
`Status::Success`	Frame saving started successfully.
Error status	Frame saving could not be started. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::startFrameSaving(
    source,
    "frames",
    delta::frameEndBased(33)
);

stopFrameSaving()

Status stopFrameSaving(InputSource* handle);

Stops frame image saving for the opened input source.

Use when: After startFrameSaving() when continuous BMP frame saving should end.

Parameters

Name	Type	Direction	Description
`handle`	`InputSource*`	Input	Input source handle returned by `openDevice()` or `openFile()`.

Returns

Value	Meaning
`Status::Success`	Frame saving stopped successfully.
Error status	Frame saving could not be stopped. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::stopFrameSaving(source);
if (status != delta::Status::Success) {
    std::cout << delta::getStatusMessage(status) << std::endl;
}

saveFrameByTime()

Status saveFrameByTime(InputSource* handle,
                       const char* saveDirectory,
                       std::int32_t durationMs,
                       FrameGeneration generation);

Saves generated frame image data for the specified duration using the selected frame generation setting. This function blocks until saving completes. Like startFrameSaving(), it applies generation through setFrameGeneration(), and that change persists after saving stops.

Use when: After startStream() or startPlayback() to save BMP frames for a fixed duration.

Parameters

Name	Type	Direction	Description
`handle`	`InputSource*`	Input	Input source handle returned by `openDevice()` or `openFile()`.
`saveDirectory`	`const char*`	Input	Directory where frame images will be saved.
`durationMs`	`std::int32_t`	Input	Saving duration in milliseconds.
`generation`	`FrameGeneration`	Input	Frame generation mode and parameter.

Returns

Value	Meaning
`Status::Success`	Frame images were saved successfully.
Error status	Frame images could not be saved. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::saveFrameByTime(
    source,
    "frames",
    5000,
    delta::timeBased(16)
);

saveFrameByFrameCount()

Status saveFrameByFrameCount(InputSource* handle,
                             const char* saveDirectory,
                             std::uint64_t frameCount,
                             FrameGeneration generation);

Saves generated frame image data until the number of saved image frames reaches the specified frame count. This function blocks until saving completes. Like startFrameSaving(), it applies generation through setFrameGeneration(), and that change persists after saving stops.

Use when: After startStream() or startPlayback() to save a fixed number of BMP frames.

Parameters

Name	Type	Direction	Description
`handle`	`InputSource*`	Input	Input source handle returned by `openDevice()` or `openFile()`.
`saveDirectory`	`const char*`	Input	Directory where frame images will be saved.
`frameCount`	`std::uint64_t`	Input	Number of image frames to save.
`generation`	`FrameGeneration`	Input	Frame generation mode and parameter.

Returns

Value	Meaning
`Status::Success`	Frame images were saved successfully.
Error status	Frame images could not be saved. Pass the status to `getStatusMessage()` for details.

Example

delta::Status status = delta::saveFrameByFrameCount(
    source,
    "frames",
    300,
    delta::frameEndBased(33)
);
