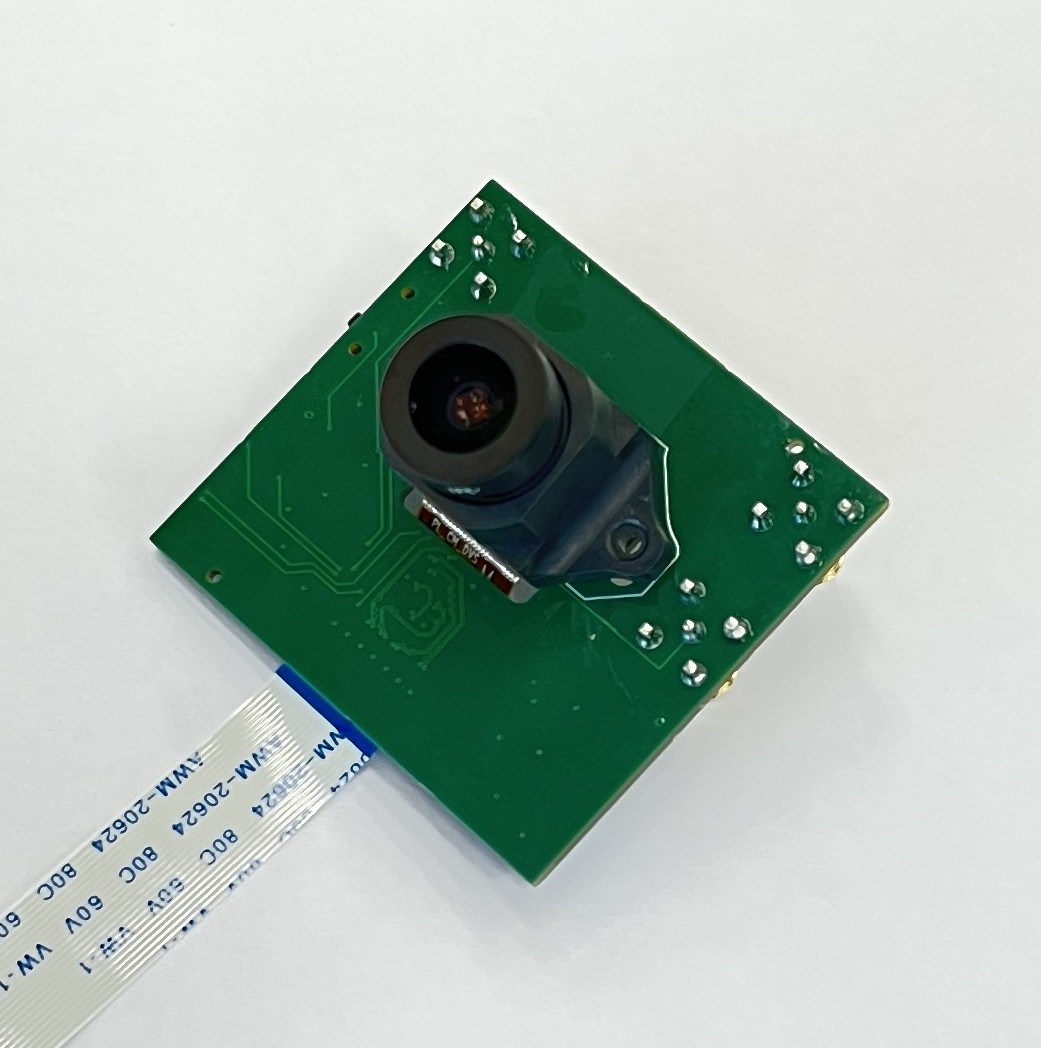

DVS MIPI 22-pin FFC Carrier Board
The DVS Carrier Board provides a compact interface for connecting an NRV DVS sensor module to a compatible host platform through a 22-pin FFC cable.
Overview
The DVS MIPI 22-pin FFC Carrier Board acts as an interface between the NRV RC1S Dynamic Vision Sensor and a compatible platform equipped with a 22-pin MIPI CSI-2 connector. It enables the RC1S to be integrated into a wide range of systems that support the same MIPI interface and pin configuration.
The carrier board routes the sensor's four-lane MIPI CSI-2 interface, control signals, and power through a single 22-pin FFC connection. Each MIPI lane supports data rates up to 2.5 Gbps.
Key Specifications
| Item | Specification |
|---|---|
| Product Name | DVS MIPI 22-pin FFC Carrier Board |
| Sensor Interface | MIPI CSI-2 |
| MIPI Configuration | 4 data lanes + 1 clock lane |
| Maximum Data Rate | 2.5 Gbps per lane |
| Connector Model | XF2M-2215-1A |
| FFC Contact Pitch | 0.5 mm |
| Connector Contact Type | Dual contact (top and bottom) |
| Control Interface | I²C and DVS reset |
| Supply Voltage | 3.3 V |

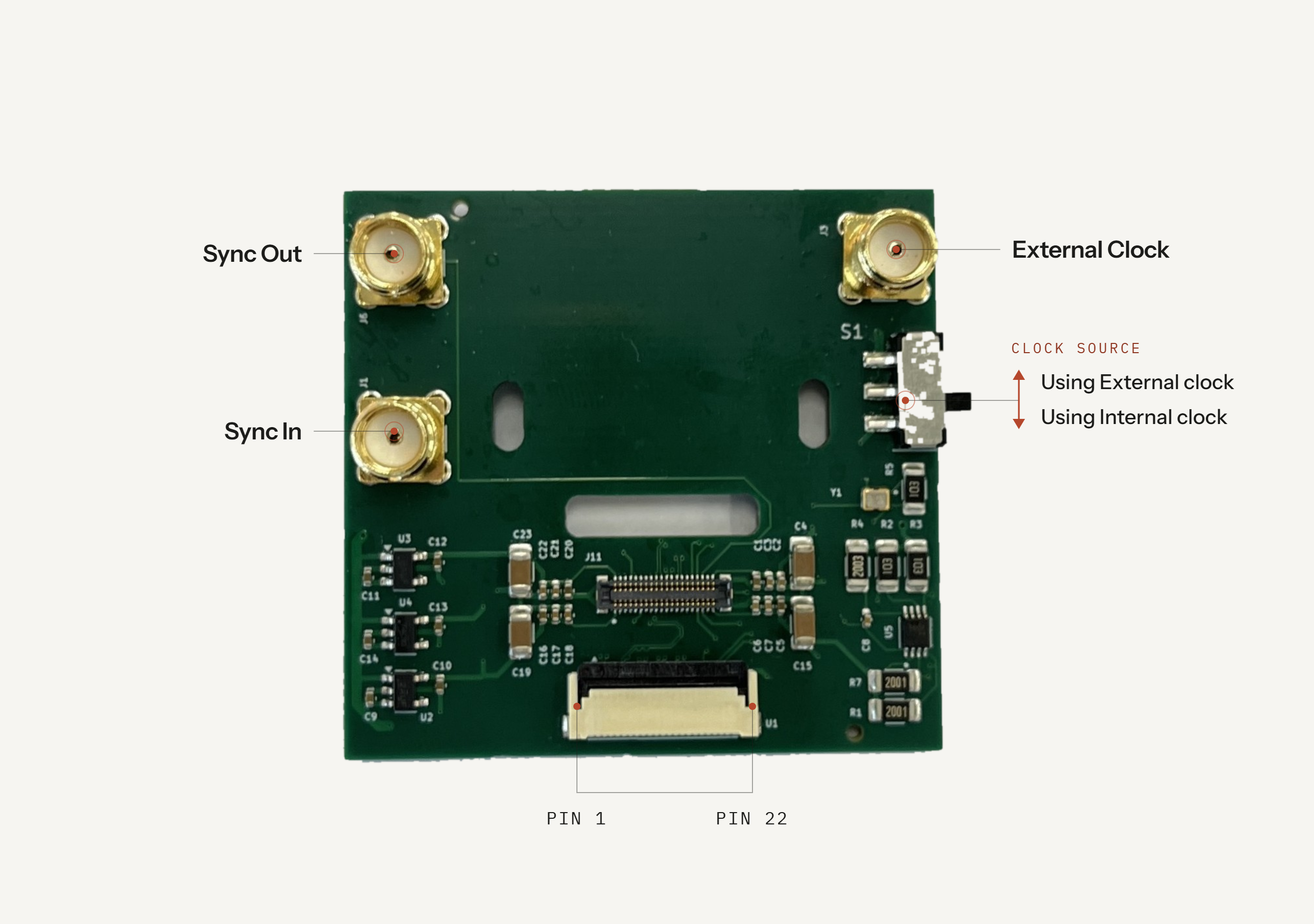

22-pin FFC Pinout
| Pin | Signal | Description |
|---|---|---|
| 1 | GND | Ground |
| 2 | MIPI_DN0 | MIPI data lane 0 negative |
| 3 | MIPI_DP0 | MIPI data lane 0 positive |
| 4 | GND | Ground |
| 5 | MIPI_DN1 | MIPI data lane 1 negative |
| 6 | MIPI_DP1 | MIPI data lane 1 positive |
| 7 | GND | Ground |
| 8 | MIPI_CLK_N | MIPI clock lane negative |
| 9 | MIPI_CLK_P | MIPI clock lane positive |
| 10 | GND | Ground |
| 11 | MIPI_DN2 | MIPI data lane 2 negative |
| 12 | MIPI_DP2 | MIPI data lane 2 positive |
| 13 | GND | Ground |
| 14 | MIPI_DN3 | MIPI data lane 3 negative |
| 15 | MIPI_DP3 | MIPI data lane 3 positive |
| 16 | GND | Ground |
| 17 | NC | Not connected |
| 18 | DVS_Reset | DVS reset, active low |
| 19 | GND | Ground |
| 20 | I2C_SCL | I²C clock |
| 21 | I2C_SDA | I²C data |
| 22 | 3V3 | 3.3 V supply |
