Single Streaming

This sample shows how to receive live event data from a single DELTA Series camera and display generated ColorFrame output with OpenCV. Use this sample after confirming that the camera can be opened with the Device Connection sample.

Back to Code Samples.

Example Overview

Step	SDK API	Purpose
1	`scanDevices()` / `openDevice()`	Find and open a connected DELTA Series camera.
2	`applySensorSetting()`	Apply the recommended sensor setting file.
3	`setFrameGeneration()`	Choose how event data is converted into generated frames.
4	`setOutputType()`	Select `ColorFrame` output for OpenCV preview.
5	`setColorFormat()` / `setColor()`	Choose gray or RGB event visualization.
6	`getColorFrameBufferSize()`	Get the required caller-owned frame buffer size.
7	`startStream()`	Start live USB streaming.
8	`getColorFrame()`	Read generated frames from the live stream.
9	`stopStream()` / `closeDevice()`	Stop streaming and release the device.

Expected Result

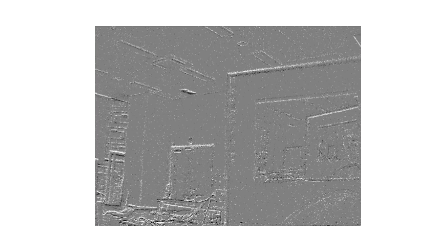

When the sample runs successfully, an OpenCV preview window appears and shows the live camera output.

Single Streaming result

Code Walkthrough

Edit the User Control Panel

The USER CONTROL PANEL section is the only part you normally need to edit. Each option group has one active line and one or more commented alternatives. To use a different mode, comment out the current active line and uncomment the mode you want to use.

Select a Camera

selectDeviceIndex selects which camera from the latest scanDevices() result will be opened.

const std::int32_t selectDeviceIndex = 0;

selectDeviceIndex = 0 selects the first detected camera. If multiple cameras are connected, use 1, 2, and so on to choose another detected camera.

Select a Frame Generation Mode

Frame generation controls how raw event data is grouped into display frames. Only one selected_framemode line should be active at a time.

(a) FrameEndBased

This is the default mode used by the example.

const std::string selected_framemode = "FrameEndBased";
const std::int32_t frameEndCount = 20;

When this mode is active, the SDK generates one output frame after the selected number of frame-end markers. This is a good default for live preview because it follows the camera stream structure directly.

(b) TimeBased

To use time-based frame generation, uncomment the TimeBased line in the example and comment out the currently active FrameEndBased line.

// const std::string selected_framemode = "TimeBased";
const std::int32_t framePeriodMs = 16;

When this mode is active, the SDK generates one output frame at a fixed time interval. For example, framePeriodMs = 16 is about 60 Hz.

(c) EventCountBased

To use event-count-based frame generation, uncomment the EventCountBased line in the example and comment out the currently active FrameEndBased line.

// const std::string selected_framemode = "EventCountBased";
const std::int32_t eventsPerFrame = 150000;

When this mode is active, the SDK generates one output frame after the selected number of events. If eventsPerFrame is too small, event activity can be split across too many frames and the preview may look clipped.

Note

Keep only one selected_framemode definition active. If more than one selected_framemode line is uncommented, the example will not compile because the same variable is defined multiple times.

Select the Color Format

The color format controls how the generated ColorFrame is stored and shown in OpenCV.

(a) Gray

This is the default mode used by the example.

const std::string selected_colorformat = "Gray";

When Gray is active, the SDK generates a single-channel grayscale image. The default grayscale rendering is:

Event State	Display Color
ON event	White
OFF event	Black
No event	Gray

(b) RGB

To use RGB output, uncomment the RGB line in the example and comment out the currently active Gray line.

// const std::string selected_colorformat = "RGB";

When RGB is active, the SDK generates a three-channel RGB image. You can customize the ON event, OFF event, and no-event colors with rgbColor.

const delta::EventColor rgbColor = {
    {255, 0, 0},     // ON event color
    {0, 0, 255},     // OFF event color
    {255, 255, 255}  // No event (background) color
};

The values are written in RGB order. In the default example above:

Event State	RGB Value	Display Color
ON event	`{255, 0, 0}`	Red
OFF event	`{0, 0, 255}`	Blue
No event	`{255, 255, 255}`	White

Note

Keep only one selected_colorformat definition active. If both Gray and RGB are uncommented, the example will not compile because the same variable is defined multiple times.

The full user control section in the example is organized like this:

const std::int32_t selectDeviceIndex = 0;

const std::string selected_framemode = "FrameEndBased";
const std::int32_t frameEndCount = 20;

// const std::string selected_framemode = "TimeBased";
const std::int32_t framePeriodMs = 16;

// const std::string selected_framemode = "EventCountBased";
const std::int32_t eventsPerFrame = 150000;

const std::string selected_colorformat = "Gray";
// const std::string selected_colorformat = "RGB";

Open the Device and Apply Sensor Settings

This example keeps the device setup minimal. For a detailed connection flow, see Device Connection.

std::int32_t deviceCount = 0;
delta::Status status = delta::scanDevices(&deviceCount);

if (status != delta::Status::Success) {
    std::cout << "scanDevices failed: "
              << delta::getStatusMessage(status) << "\n";
    return 1;
}

delta::DeviceInfo deviceInfo{};
status = delta::getDeviceInfo(selectDeviceIndex, &deviceInfo);

delta::DeviceHandle cameraHandle = nullptr;
status = delta::openDevice(deviceInfo.index, &cameraHandle);

After opening the camera, apply the recommended sensor setting file for the detected model.

const std::filesystem::path settingFilePath =
    deviceInfo.type == delta::DeviceType::Delta_01
        ? std::filesystem::path(DELTA_SETTINGS_DIR) / "Delta_01_1000FPS.txt"
        : std::filesystem::path(DELTA_SETTINGS_DIR) / "Delta_10_2000FPS.txt";

const std::string settingFileString = settingFilePath.generic_string();
status = delta::applySensorSetting(cameraHandle, settingFileString.c_str());

Note

Call applySensorSetting() before starting live streaming. The setting file configures the sensor and prepares the SDK to generate output frames.

Select the Frame Generation Mode

The SDK can generate display frames from event data in three ways.

Mode	Helper	Description
`FrameEndBased`	`delta::frameEndBased(frameEndCount)`	Generates a frame after a selected number of frame-end markers.
`TimeBased`	`delta::timeBased(framePeriodMs)`	Generates a frame at a fixed time interval.
`EventCountBased`	`delta::eventCountBased(eventsPerFrame)`	Generates a frame after a selected number of events.

if (selected_framemode == "FrameEndBased") {
    status = delta::setFrameGeneration(
        cameraHandle,
        delta::frameEndBased(frameEndCount)
    );
}
else if (selected_framemode == "TimeBased") {
    status = delta::setFrameGeneration(
        cameraHandle,
        delta::timeBased(framePeriodMs)
    );
}
else if (selected_framemode == "EventCountBased") {
    status = delta::setFrameGeneration(
        cameraHandle,
        delta::eventCountBased(eventsPerFrame)
    );
}

Note

Very small eventsPerFrame values can split event activity across too many frames and make the preview look clipped.

Set the Output Type

For OpenCV preview, this sample enables only ColorFrame output.

status = delta::setOutputType(cameraHandle, delta::OutputType::ColorFrame);

if (status != delta::Status::Success) {
    std::cout << "setOutputType failed: "
              << delta::getStatusMessage(status) << "\n";
    delta::closeDevice(cameraHandle);
    return 1;
}

setOutputType() controls which processing output is generated internally. For this preview example, generating only ColorFrame avoids creating unused output formats.

Select the Color Format

Use Gray for a simple monochrome preview, or RGB to customize ON, OFF, and background colors.

const delta::EventColor rgbColor = {
    {255, 0, 0},     // ON event color
    {0, 0, 255},     // OFF event color
    {255, 255, 255}  // No event background color
};

if (selected_colorformat == "Gray") {
    status = delta::setColorFormat(cameraHandle, delta::ColorFormat::Gray);
}
else if (selected_colorformat == "RGB") {
    status = delta::setColorFormat(cameraHandle, delta::ColorFormat::RGB);

    if (status == delta::Status::Success) {
        status = delta::setColor(cameraHandle, &rgbColor);
    }
}

Prepare the Frame Buffer

Before reading frames, allocate a caller-owned buffer and attach it to delta::ColorFrame.

const std::uint32_t bufferSize =
    delta::getColorFrameBufferSize(cameraHandle);

if (bufferSize == 0) {
    std::cout << "getColorFrameBufferSize failed.\n";
    delta::closeDevice(cameraHandle);
    return 1;
}

std::vector<std::uint8_t> frameBuffer(bufferSize);

delta::ColorFrame frame{};
frame.startAddress = frameBuffer.data();
frame.bufferSize = bufferSize;

Note

Call getColorFrameBufferSize() after setting the color format. RGB output requires a larger buffer than gray output.

Start Live Streaming

Start the stream after the device setup, frame generation, output type, color format, and frame buffer are ready.

status = delta::startStream(cameraHandle);

if (status != delta::Status::Success) {
    std::cout << "startStream failed: "
              << delta::getStatusMessage(status) << "\n";
    delta::closeDevice(cameraHandle);
    return 1;
}

Display Frames with OpenCV

The preview loop reads the latest generated frame and displays it with OpenCV. Press ESC to exit.

while (true) {
    bool hasFrame = false;

    for (int drainCount = 0; drainCount < 8; ++drainCount) {
        status = delta::getColorFrame(cameraHandle, &frame, 0);

        if (status != delta::Status::Success) {
            break;
        }

        hasFrame = true;
    }

    if (!hasFrame) {
        if (cv::waitKey(1) == 27) {
            break;
        }
        continue;
    }

    if (frame.colorFormat == delta::ColorFormat::RGB) {
        cv::Mat rgbImage(
            frame.header.height,
            frame.header.width,
            CV_8UC3,
            frame.startAddress
        );

        cv::Mat bgrImage;
        cv::cvtColor(rgbImage, bgrImage, cv::COLOR_RGB2BGR);
        cv::imshow("DELTA Live Streaming", bgrImage);
    }
    else {
        cv::Mat grayImage(
            frame.header.height,
            frame.header.width,
            CV_8UC1,
            frame.startAddress
        );

        cv::imshow("DELTA Live Streaming", grayImage);
    }

    if (cv::waitKey(1) == 27) {
        break;
    }
}

The inner loop calls getColorFrame() several times to drain older generated frames and keep the preview close to the latest stream output.

Stop Streaming

Stop the stream and close the camera before the application exits.

delta::stopStream(cameraHandle);
delta::closeDevice(cameraHandle);
cv::destroyAllWindows();
